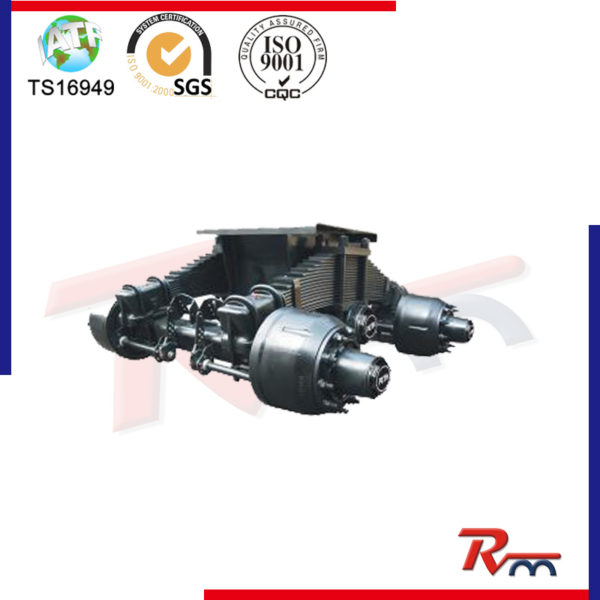

Bogie Suspension

RM NO.: DDXG24TD

  • Description
  • Reviews (0)

Product Description

High mounting series
RM# Max Capacity
(Kg)
Bearing Axle tube Brake Track length P.C.D. C.B.D Stud Wheel base Spring center Recommended Wheel(inch)
DDXG24TD 24000 33213  33118 □150 Φ420×180 1840 Φ335 Φ281 10-M22*1.5 1400 980 7.50V-20
DDXG28TD 28000 33215  32219 □150 Φ420×200 1840 Φ335 Φ281 10-M22*1.5 1550 900 8.00V-20
DDXG32TD 32000 32314  32222 □150 Φ420×200 1850 Φ335 Φ281 10-M22*1.5 1550 900 8.5-20
DDXG36TD 36000 32314  32222 □150 Φ420×220 1870 Φ335 Φ281 10-M22*1.5 1550 900 8.5-20
DDXG24TLF 24000 33213  33118 □150 Φ420×180 1870 Φ335 6-M20×1.5 1400 900 8.5-24
DDXG28TLF 28000 33215  32219 □150 Φ420×200 1840 Φ335 6-M20×1.5 1550 900 8.5-24
DDXG32TLF 32000 32314  32222 □150 Φ420×200 1840 Φ335 6-M20×1.5 1550 900 8.5-24
DDXG36TLF 36000 32314  32222 □150 Φ420×200 1870 Φ335 6-M20×1.5 1550 900 8.5-24
Low mounting series
RM# Max Capacity
(Kg)
Bearing Axle tube Brake Track length P.C.D. C.B.D Stud Wheel base Spring center Recommended Wheel(inch)
DDXG24TDL 24000 33213  33118 □150 Φ420×200 1870 Φ335 Φ281 10-M22×1.5 1400 980 7.50V-20
DDXG28TDL 28000 33215  32219 □150 Φ420×200 1870 Φ335 Φ281 10-M22×1.5 1550 900 8.00V-20
DDXG32TDL 32000 32314  32222 □150 Φ420×200 1870 Φ335 Φ281 10-M22×1.5 1550 900 8.5-20
DDXG36TDL 36000 32314  32222 □150 Φ420×220 2120 Φ335 Φ281 10-M22×1.5 1550 1150 8.5-20
DDXG24TLFL 24000 33213  33118 □150 Φ420×180 1870 Φ335 6-M20×1.5 1400 900 8.5-24
DDXG28TLFL 28000 33215  32219 □150 Φ420×200 1840 Φ335 6-M20×1.5 1550 900 8.5-24
DDXG32TLFL 32000 32314  32222 □150 Φ420×200 1840 Φ335 6-M20×1.5 1550 900 8.5-24
