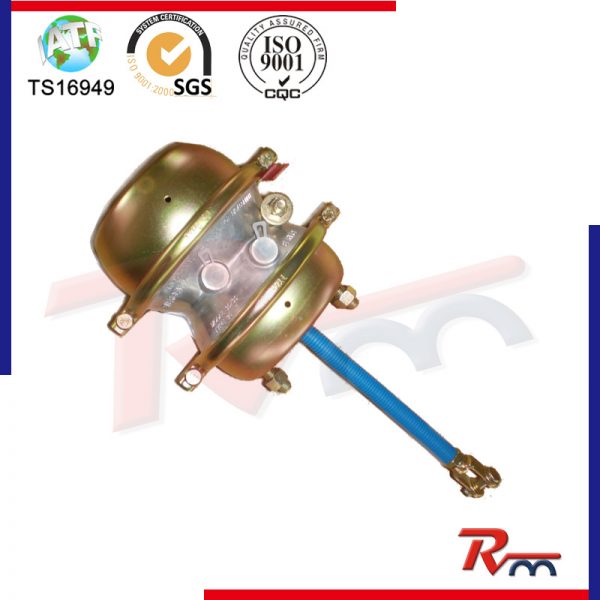

Brake Chamber for Truck & Trailer

RM No.: T3030DD

Description

Product Description

Model	RM#	Description
Model	RM#	Stroke	Air inlet thread	Bolt thread	Bolt center	Pushrod thread	Pushrod length
T30/30DD	QS3030A	64	2-NPT3/8	2-M16 x 1.5	120.7mm	M16 x 1.5	285mm
	QS3030B	64	2-NPT3/8	2-5/8-11UNC	120.7mm	5/8-18UNF	285mm
	QS3030C	64	2-M16 x 1.5	2-M16 x 1.5	120.7mm	M16 x 1.5	285mm

T30/30DD FULL SEALED	QS3030FSA	64	2-NPT3/8	2-M16 x 1.5	120.7mm	M16 x 1.5	285mm
	QS3030FSB	64	2-NPT3/8	2-5/8-11UNC	120.7mm	5/8-18UNF	285mm
	QS3030FSC	64	2-M16 x 1.5	2-M16 x 1.5	120.7mm	M16 x 1.5	285mm

T24/30DD	QS2430A	64	2-NPT3/8	2-5/8-11UNC	120.7mm	5/8-18UNF	285mm
	QS2430B	64	2-M16 x 1.5	2-M16 x 1.5	120.7mm	M16 x 1.5	285mm
	QS2430C	64	2-NPT3/8	2-M16 x 1.5	120.7mm	M16 x 1.5	285mm

T24/24DD	QS2424A	57	2-NPT3/8	2-M16 x 1.5	120.7mm	M16 x 1.5	285mm
	QS2424B	57	2-NPT3/8	2-5/8-11UNC	120.7mm	5/8-18UNF	285mm
	QS2424C	57	2-M16 x 1.5	2-M16 x 1.5	120.7mm	2-M16 x 1.5	285mm

T16/24DD	QS1624A	57	2-NPT3/8	2-M16 x 1.5	120.7mm	M16 x 1.5	285mm
	QS1624B	57	2-M16 x 1.5	2-M16 x 1.5	120.7mm	M16 x 1.5	285mm
	QS1624C	57	2-NPT3/8	2-5/8-11UNC	120.7mm	5/8-18UNF	285mm
